Joining nets

Developed and patented in Norway

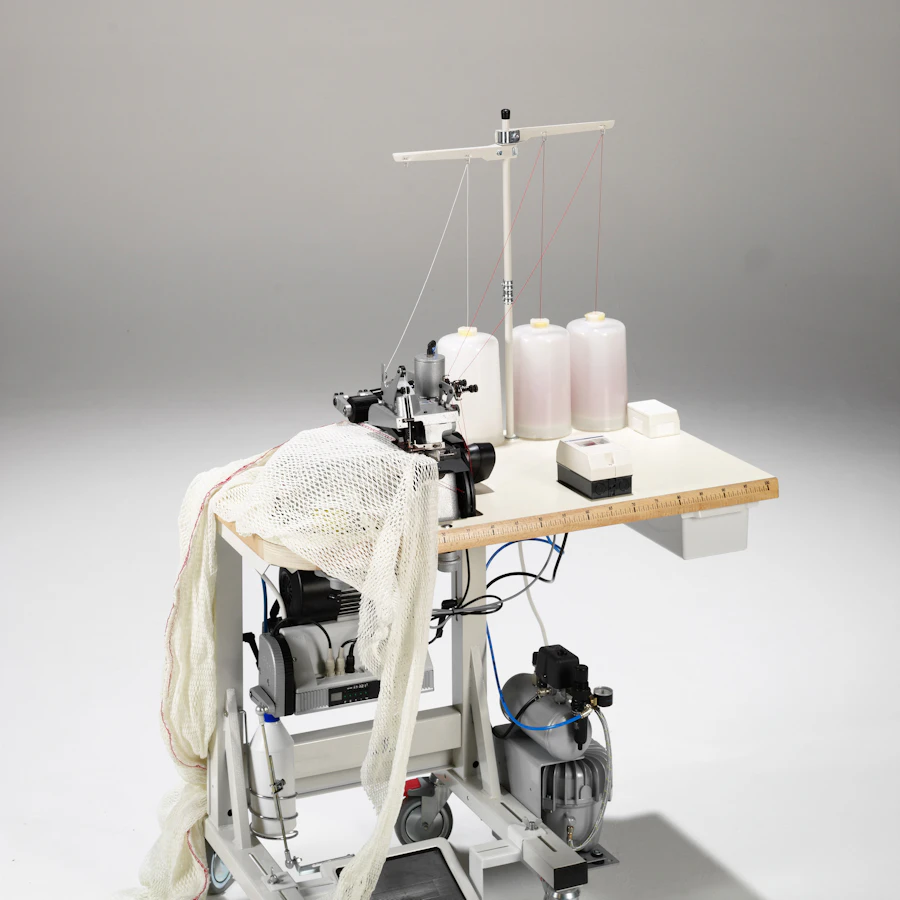

AMANET AM402 is a powerful, fast and reliable machine for joining Raschel and knotted netting along straight meshes or diagonal cuts. Developed, engineered and patented in Norway in 1999, it has since been continuously improved in cooperation with demanding customers worldwide.

A specially developed needle support combined with eccentric adjustment provides secure seams with excellent strength and elasticity. The machine joins multiple layers of netting at high speed while reducing the risk of material damage, skipped stitches and needle breakage.

An integrated double puller feed ensures easy material handling and strong, consistent feeding throughout the sewing operation.

The AM402 is ideal for producing and repairing fish-farming cages, purse seines, safety nets, cargo nets and sports nets. Its compact, ergonomic design makes the machine easy to operate and reposition when working with large net structures.

Optional equipment

• Electronic sensor for thread stand - stops automatically if there's a knot on the thread or when the thread is stuck
• Electric height-adjustable stand and free-standing pedal

Technical specifications:

• - CE-marked machine made in Norway
• - 3 thread elastic seam with thread size up to Tkt no. 10
• - Special titanium coated needles no 160
• - Special needle guard and constructions to avoid drop stitch
• - Adjustable stitch length up to 16mm
• - Adjustable seam width up to 18mm
• - Height adjustable stand with 4 lockable big rubber wheels
• - Single phase 230volt electronic controlled DC-motor
• - Integrated silent oil compressor 18,5l/min, 4 litre tank, noise level 40 dBA
• - Multifunctional thread stands with automatic integrated safety switch
• - Pneumatical presserfoot lift and puller lift
• - Sewing speed controlled by operator, up to 2000 rpm
• - Air pistol mounted for easy maintenance
• - Flexible LED light mounted on table
• - Main switch in addition to electric sockets.
• - Integrated drawer with tools, needles, oil, spare part list, operator manual and technical manual
