The AMAROPE AM302 is a powerful and reliable solution for joining and lacing nets and attaching rope to net. Developed and built in Norway since 1980, it has been continuously improved in cooperation with demanding customers worldwide.

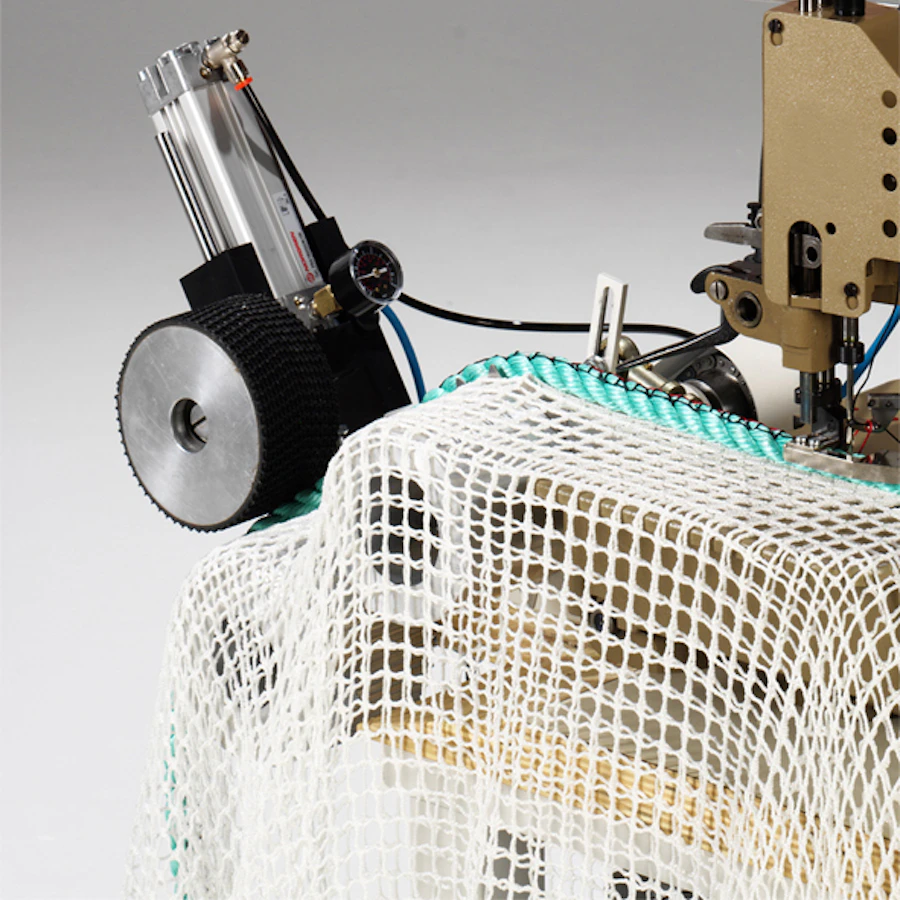

The machine can sew several layers of net together with different rope types and sizes, including medium Danline rope up to 24 mm. A heavy-duty puller feed with a specially designed mesh wheel provides strong and consistent feeding.

The amount of net and rope in the seam can be adjusted pneumatically by the operator. Special solutions are available for lead ropes, HMPE, braided ropes and other materials on request.

Adjustment to different materials and operations is easily performed by the operator. The stitch is a solid 3-thread binding, and very thick thread can be used.

The AM302 is ideal for producing and repairing fish-farming cages, purse seines, trawls, safety nets, cargo nets and sports nets. Its compact, ergonomic design makes the machine easy to operate and reposition when handling large net structures.

Optionals

• Knot catcher (for joining net without damage to the material).
• Different types of presserfeet for various applications.
• Sensor for threadstand. The machine stops automatically when sensing knots and stuck thread.
• Electric height adjustable stand and freely movable treadle.

Technical specifications:

• CE-marked machine made in Norway

• 3 thread elastic seam with thread size up to 24/72

• Special developed long and high-quality needles no 400

• Adjustable stitch length up to 30mm, by the thickest rope

• Adjustable seam width up to 30mm

• Adjustable feeding of net to rope up to 5% slack

• Electric height adjustable stand with 4 lockable big rubber wheels

• Single phase 230volt electronic controlled DC-motor

• Integrated silent oil compressor 18,5l/min, 4 litre tank, noise level 40 dBA

• Multifunctional thread stand with automatic integrated safety switch

• Pneumatical presserfoot lift and puller lift

• Pneumatic control box with pressure gauges and switch

• Sewing speed controlled by operator, up to 900 rpm

• Air pistol mounted for easy maintenance

• Flexible LED light mounted on table

• Main switch in addition to electric sockets.

• Integrated drawer with tools, needles, oil, spare part list, operator manual and technical manual
